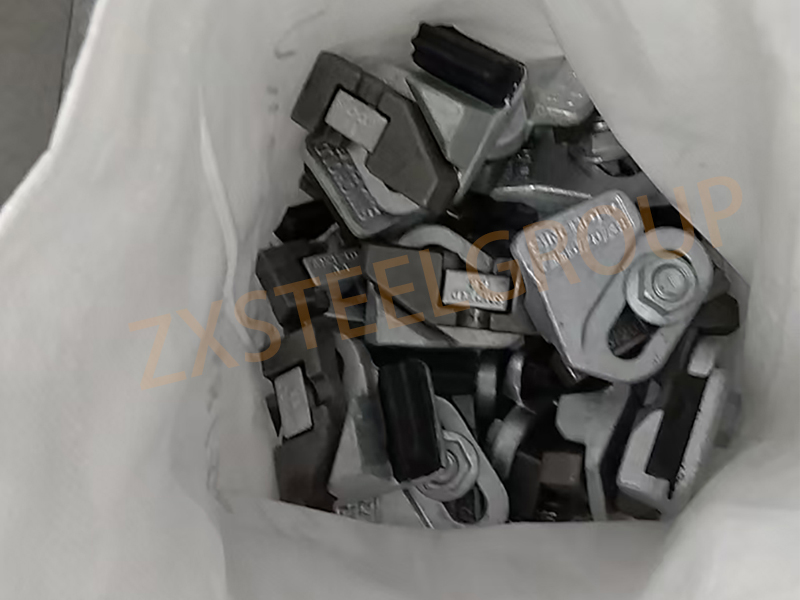

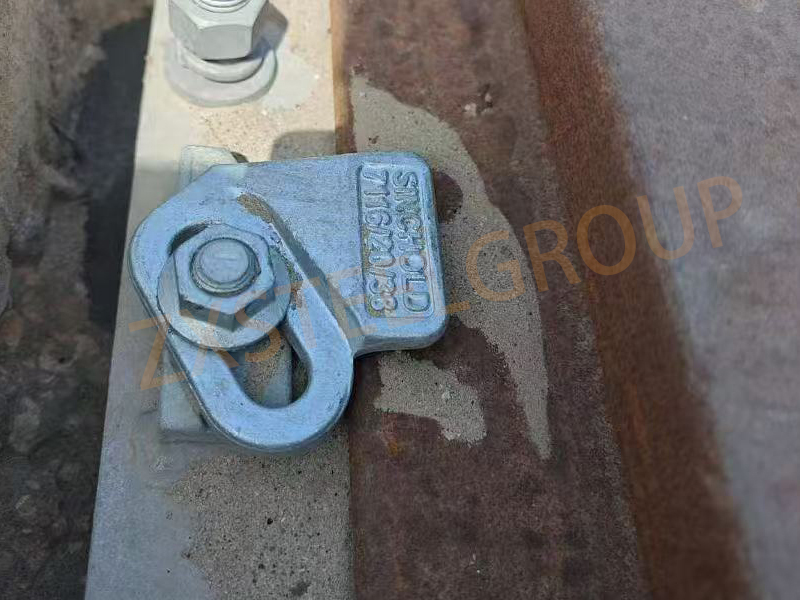

7116/20/38 Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 120kN(12.2 tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.

Specification:

Max side load 120KN

20mm horizontal rail adjustment

Dimensions(mm):

REF NO.	X	Y FULL NUT	Y THIN NUT	Z	WEIGHT kg
7116/20/38	38	45	42	29	0.87
S (rubber)	RAIL WITH PAD PLAN			14mm
H (rubber)	RAIL WITHOUT PAD PLAN			21mm

Components:

1. Flange nut

2. Forging steel clip

3. Vulcanized rubber block

4. Weldable base

5. M16 Captive bolt

Applications:

Used for Qu80, QU70, P38, P43, Jis37, Asce80, Asce85, S20, S30, S33, A45, A55, A65, A75, A100,Uic60, etc.

Features:

1.    The proven design has been used successfully for many years throughout the world.

2.    The clip is welded to the rail support. No access is required from below.

3.    The two main parts are locked together on tightening the grade 8.8 bolt.

4.    The clip has a self-tightening mechanism.

5.    A special vulcanized rubber block applies a controlled force to the rail.
