9116/08/37 crane rail clips( Rail clamp). Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 55kN(5.6 tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.

Specifications:

Max side load using grade 8.8 bolt 55kN

8mm horizontal rail adjustment

Dimensions(mm):

REF NO.	X	Y FULL NUT	Z	WEIGHT kg
9116/08/37	37	38	24	0.73
S (rubber)	RAIL WITH PAD PLAN		14mm
H (rubber)	RAIL WITHOUR PAD PLAN		21mm

Components:

1.    Flange nut.

2.    Forging steel clip.

3.    Vulcanized rubber block.

4.    Weldable base.

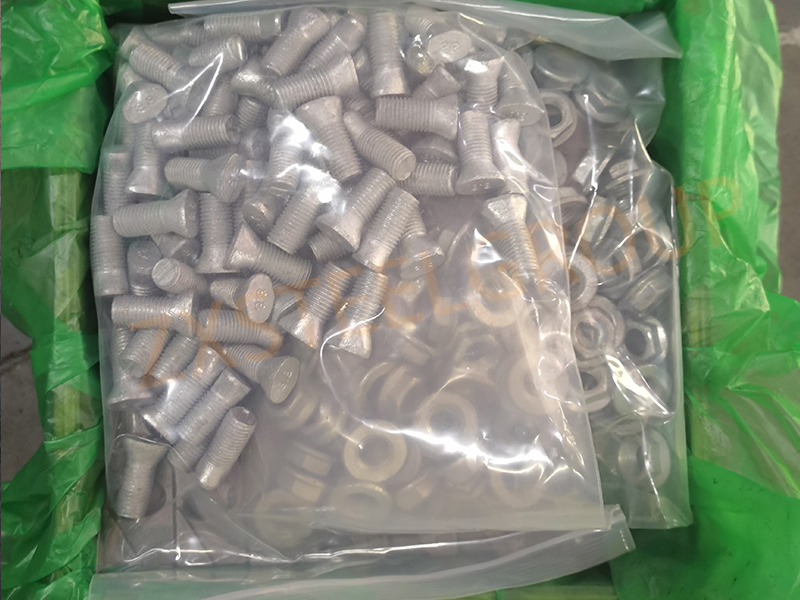

5.    M16 Captive bolt.Applications:

Used for QU70 rail, QU80 rail, a55 rail, a65 rail, a75 rail, a100 rail, s30 rail, s33 rail, s41 rail, s49 rail, jis37 rail, asce80 rail, asce85 rail, uic54 rail, etc. Other rail sizes according to your requirements.

Features:

1.    The proven design has been used successfully for many years throughout the world.

2.    The clip is welded to the rail support. No access is required from below.

3.    The two main parts are locked together on tightening the grade 8.8 bolt.

4.    The clip has a self-tightening mechanism.

5.    A special vulcanized rubber block applies a controlled force to the rail.
