ZXSTEELGROUP have more than 20 years experiences for sale steel rail and track accessories, including DIN standard crane rail, a45, a55, a65, a75, a100, a120, a150 rail and rail clip, rail clamp, rail joint, rail rubber pad, etc. Can process according to your demand. Contact us for more details!

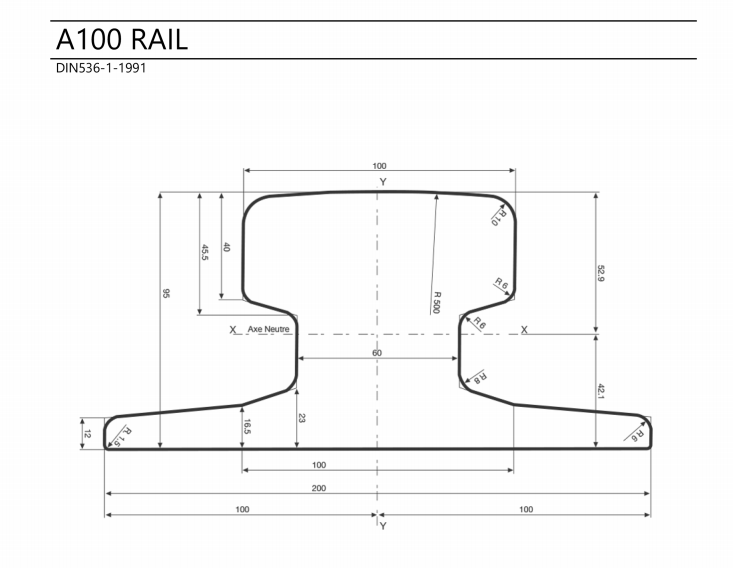

ZongXiang's A100 rail, certified to DIN 536 standards, is specifically designed for high-load, high-frequency industrial environments. Featuring a 100mm-wide head profile and constructed from U71Mn high-carbon steel. As a reputable crane rail supplier, ZongXiang specializes in providing high-quality DIN 536 a100 crane rails, manufactured strictly in accordance with German standards.
| Model | Calculated Mass | Tensile Strength (Min) N/mm2 | Yield Point (Min) N/mm2 | Elongation(%) | Length(m) |
| A100 | 74.3kg/m | 880 | 440 | 8 | 12 |
| Location | Carbon | Silicon | Manganese | Phosphorous | Sulphur |
| China | 0.60-0.80 | ＜0.50 | 0.80-1.30 | ＜0.045 | ＜0.045 |
DIN 536 Standard A100 rail length are furnished from 6-12meter. Other lengths are available upon request. Steel Grade are produced to various qualities and specifications as required by our clients.
A100 Crane Rail to DIN536 is a heavy duty rail designed to provide unrivalled strength and durability in demanding industrial environments. It has been precision engineered to combine robust material properties with optimised geometry to support high load applications, ensuring safe and efficient operation across a wide range of industries.
A100 rails are available in diverse lengths and profiles to meet varied operational demands.
As a leading crane rail supplier, ZongXiang offers meticulously engineered gantry crane rail and overhead crane rail solutions. We specialize in providing customizable gauge configurations ranging from 600mm to 1520mm, along with tailored cross – sectional parameters to meet diverse project requirements.
20+ Years Export Experience: With 20+ years of export experience, ZongXiang offers full export documentation, third-party inspection (SGS/BV), and reliable packaging for overseas shipment.
One-to-one project support: We offer one-on-one project support, including rail selection guidance, drawing confirmation, and accessory matching. Technical team with deep industry expertise ensures smooth implementation for international projects
