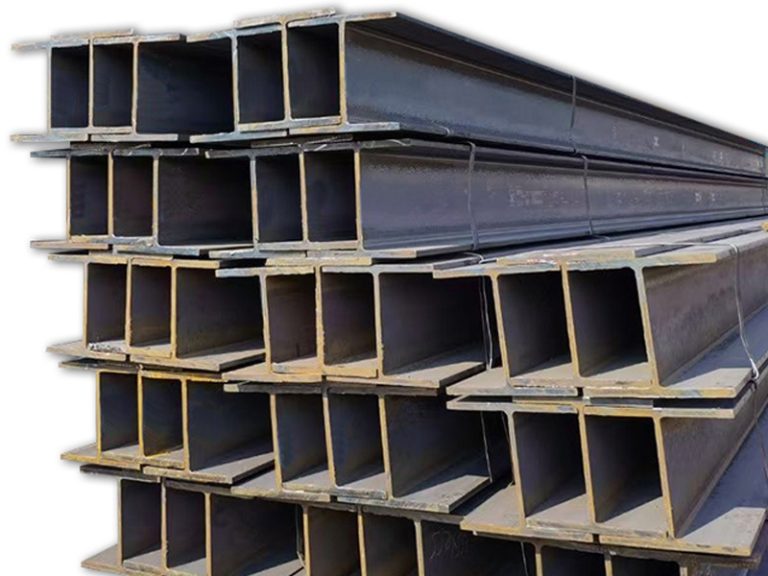

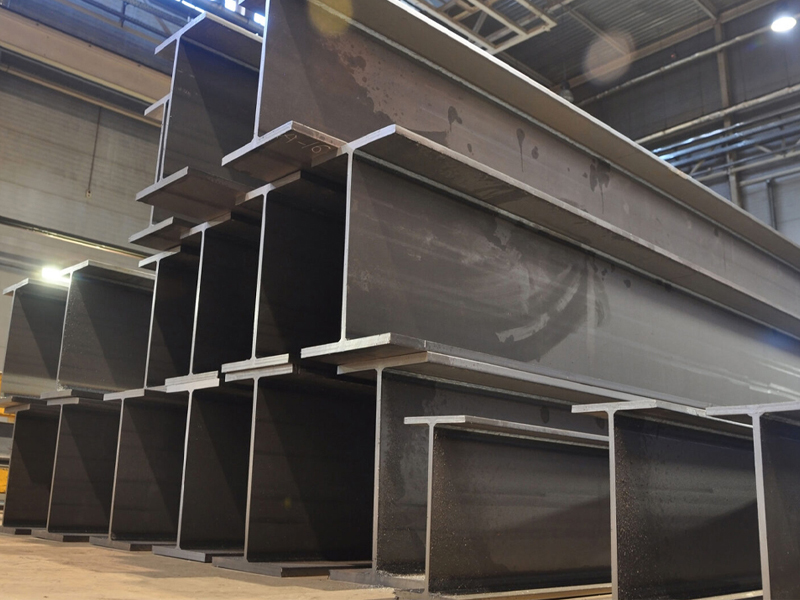

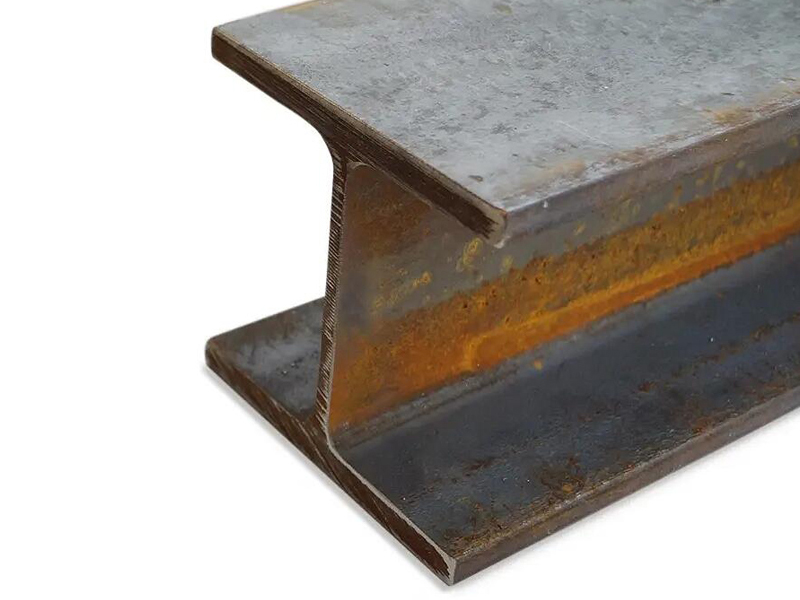

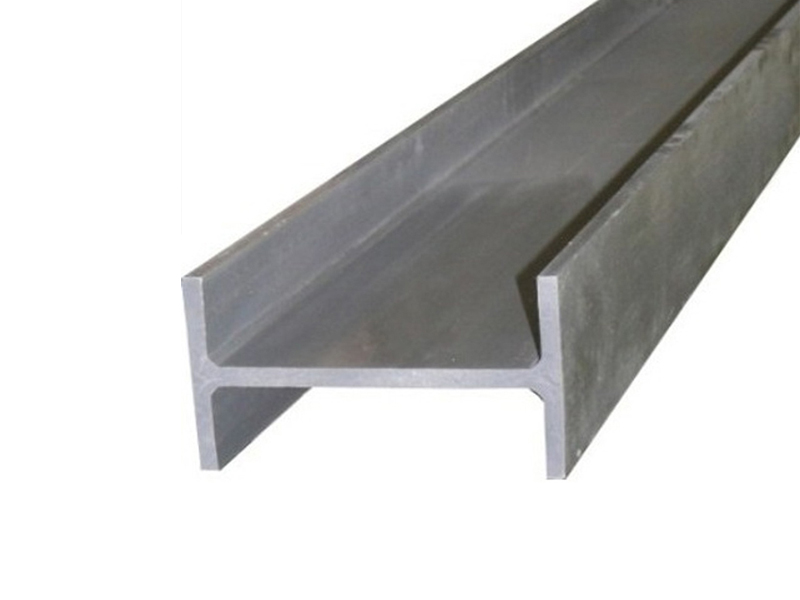

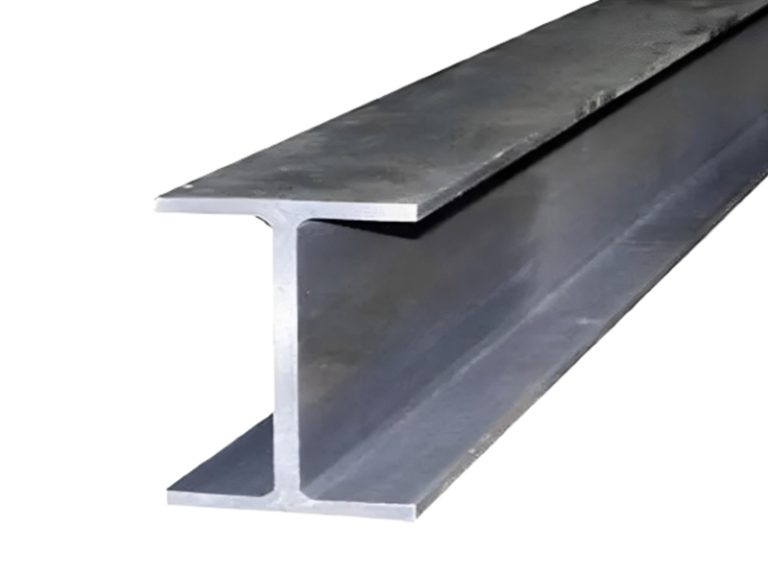

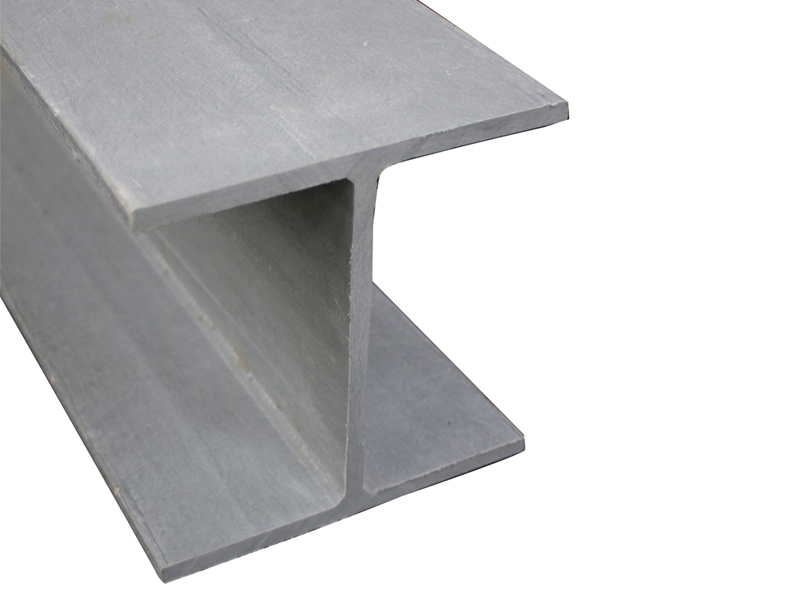

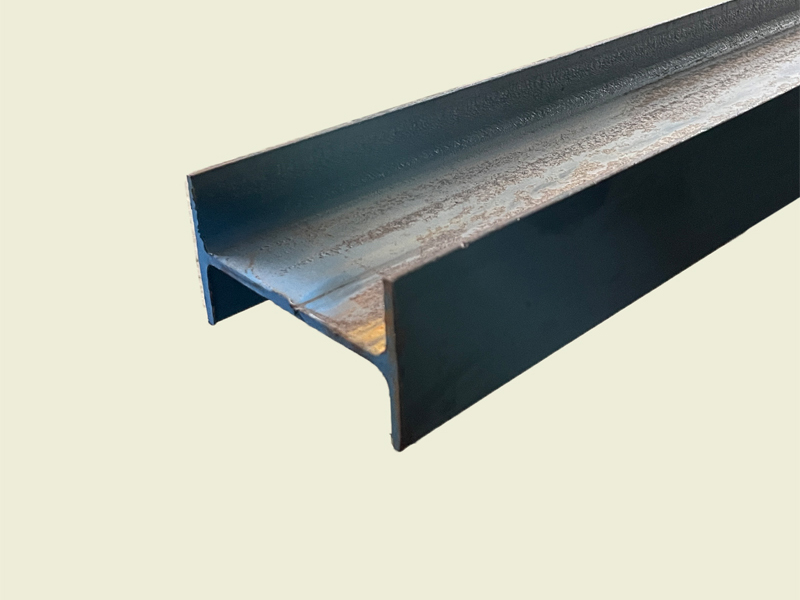

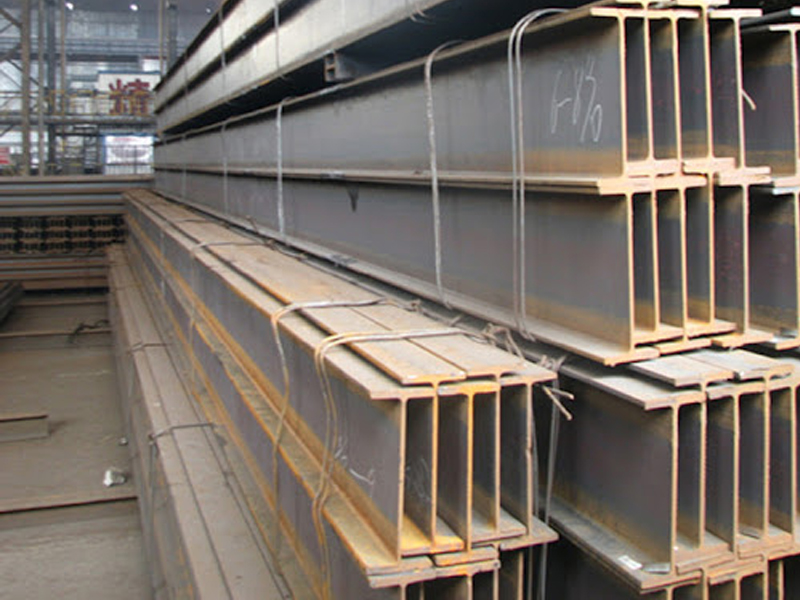

H Beam

Description

H-shaped steel is an economical cross-section high-efficiency section with more optimized cross-sectional area distribution and a more reasonable strength-to-weight ratio. It is named because its cross-section is the same as the English letter “H”. The two outer and inner sides of the H-shaped steel have no slope and are straight. This makes the welding and splicing of H-beams easier than I-beams, and has better mechanical properties per unit weight, which can save a lot of materials and construction time.

Advantages

H-shaped steel has strong bending resistance, and the two surfaces of its flanges are parallel to each other, making connection, processing, and installation easier. Under the same section load, the hot-rolled H-steel structure is 15%-20% lighter than traditional steel structures, and can be processed T-shaped steel and honeycomb beams are combined to form various cross-sectional forms to meet the needs of engineering design and production.

Applications:

Widely used in large buildings with large bearing capacity and good section stability, as well as bridges, ships, lifting and transportation machinery, equipment foundations, brackets, foundation piles, etc., the demand is increasing day by day.

H Beam Specifications

Type	Designation	Section Size					Sectional area	Mass	Moment of inertia		Inertia radius		Inertia radius
		mm					cm2	kg/m	cm4		cm		cm3
		h	b	t1	t2	r	cm2	kg/m	ix	iy	ix	iy	wx	wy
HW	100 x 100	100	100	6	8	8	21.58	16.9	378	134	4.18	2.48	75.6	26.7
HW	125 x 125	125	125	6.5	9	8	30	23.6	839	293	5.28	3.12	134	46.9
HW	150 x 150	150	150	7	10	8	39.64	31.1	1620	563	6.39	3.76	216	75.1
HW	175 x 175	175	175	7.5	11	13	51.42	40.4	2900	984	7.5	4.34	331	112
HW	200 x 200	200	200	8	12	13	63.53	49.9	4720	1600	8.61	5.02	472	160
HW	200 x 200	200	204	12	12	13	71.53	56.2	4980	1700	8.34	4.81	498	167
HW	250 x 250	244	252	11	11	13	81.31	63.8	8700	2940	10.3	6.01	713	233
HW	250 x 250	250	250	9	14	13	91.43	71.8	10700	3650	10.8	6.31	860	292
HW	250 x 250	250	255	14	14	13	103.9	81.6	11400	3880	10.5	6.1	912	304
HW	300 x 300	294	302	12	12	13	106.3	83.5	16600	5510	12.5	7.2	1130	365
HW	300 x 300	300	300	10	15	13	118.5	93	20200	6750	13.1	7.55	1350	450
HW	300 x 300	300	305	15	15	13	133.5	105	21300	7100	12.6	7.29	1420	466
HW	350 x 350	338	351	13	13	13	133.3	105	27700	9380	14.4	8.38	1640	534
HW	350 x 350	344	348	10	16	13	144	113	32800	11200	15.1	8.83	1910	646
HW	350 x 350	344	354	16	16	13	164.7	129	34900	11800	14.6	8.48	2030	669
HW	350 x 350	350	350	12	19	13	171.9	135	39800	13600	15.2	8.88	2280	776
HW	350 x 350	350	357	19	19	13	196.4	154	42300	14400	14.7	8.57	2420	808
HW	400 x 400	388	402	15	15	22	178.5	140	49000	16300	16.6	9.54	2520	809
HW	400 x 400	394	398	11	18	22	186.8	147	56100	18900	17.3	10.1	2850	951
HW	400 x 400	394	405	18	18	22	214.4	168	59700	20000	16.7	9.64	3030	985
HW	400 x 400	400	400	13	21	22	218.7	172	66600	22400	17.5	10.1	3330	1120
HW	400 x 400	400	408	21	21	22	250.7	197	70900	23800	16.8	9.74	3540	1170
HW	400 x 400	414	405	18	28	22	295.4	232	92800	31000	17.7	10.2	4480	1530
HW	400 x 400	428	407	20	35	22	360.7	283	119000	39400	18.2	10.4	5570	1930
HW	400 x 400	458	417	30	50	22	528.6	415	187000	60500	18.8	10.7	8170	2900
HW	400 x 400	498	432	45	70	22	770.1	604	298000	94400	19.7	11.1	12000	4370
HW	500 x 500	492	465	15	20	22	258	202	117000	33500	21.3	11.4	4770	1440
HW	500 x 500	502	465	15	25	22	304.5	239	146000	41900	21.9	11.7	5810	1800
HW	500 x 500	148	470	20	25	22	329.6	259	151000	43300	21.4	11.5	6020	1840
HM	150 x 100	428	100	6	9	8	26.34	20.7	1000	150	6.16	2.39	135	30.1
HM	200 x 150	194	150	6	9	8	38.1	29.9	2630	507	8.3	3.64	271	67.6
HM	250 x 175	244	175	7	11	13	55.49	43.6	6040	984	10.4	4.21	495	112
HM	300 x 200	294	200	8	12	13	71.05	55.8	11100	1600	12.5	4.74	756	160
HM	300 x 200	298	201	9	14	13	82.03	64.4	13100	1900	12.6	4.8	878	189
HM	350 x 250	340	250	9	14	13	99.53	78.1	21200	3650	14.6	6.05	1250	292
HM	400 x 300	390	300	10	16	13	133.3	105	37900	7200	16.9	7.35	1940	480
HM	450 x 300	440	300	11	18	13	153.9	121	54700	8100	18.9	7.25	2490	540
HM	500 x 300	482	300	11	15	13	141.2	111	58300	6760	20.3	6.91	2420	450
HM	500 x 300	488	300	11	18	13	159.2	125	68900	8110	20.8	7.13	2820	540
HM	550 x 300	544	300	11	15	13	148	116	76400	6760	22.7	6.75	2810	450
HM	550 x 300	550	550	11	18	13	166	130	89800	8110	23.3	6.98	3270	540
HM	600 x 300	582	300	12	17	13	169.2	133	98900	7660	24.2	6.72	3400	511
HM	600 x 300	588	300	12	20	13	187.2	147	114000	9010	24.7	6.93	3890	601
HM	600 x 300	594	302	14	23	13	217.1	170	134000	10600	24.8	6.97	4500	700
HN	100 x 50	100	50	5	7	8	11.84	9.3	187	14.8	3.97	1.11	37.5	5.91
HN	125 x 60	125	60	6	8	8	16.68	13.1	409	29.1	4.95	1.32	65.4	9.71
HN	150 x 75	150	75	5	7	8	17.84	14	666	49.5	6.1	1.66	88.8	13.2
HN	175 x 90	175	90	5	8	8	22.89	18	1210	97.5	7.25	2.06	138	21.7
HN	200 x 100	198	99	4.5	7	8	22.68	17.8	1540	113	8.24	2.23	156	22.9
HN	200 x 100	200	100	5.5	8	8	26.66	20.9	1810	134	8.22	2.23	181	26.7
HN	250 x 125	248	124	5	8	8	31.98	25.1	3450	255	10.4	2.82	278	41.1
HN	250 x 125	250	125	6	9	8	36.96	29	3960	294	10.4	2.81	317	47
HN	300 x 150	298	149	5.5	8	13	40.8	32	6320	442	12.4	3.29	424	59.3
HN	300 x 150	300	150	6.5	9	13	46.78	36.7	7210	508	12.4	3.29	481	67.7
HN	350 x 175	346	174	6	9	13	52.45	41.2	11000	791	14.5	3.88	638	91
HN	350 x 175	350	175	7	11	13	62.91	49.4	13500	984	14.6	3.95	771	112
HN	400 x 150	400	150	8	19	13	70.37	55.2	18600	734	16.3	3.22	929	97.8
HN	400 x 200	396	199	7	11	13	71.41	56.1	19800	1450	16.6	4.5	999	145
HN	400 x 200	400	200	8	10	13	83.37	65.4	23500	1740	16.8	4.56	1170	174
HN	450 x 150	446	150	7	13	13	66.99	52.6	22000	677	18.1	3.17	985	90.3
HN	450 x 150	450	151	8	12	13	77.49	60.8	25700	806	18.2	3.22	1140	107
HN	450 x 200	446	199	8	14	13	82.97	65.1	28100	1580	18.4	4.36	1260	159
HN	450 x 200	450	200	9	14	13	95.43	74.9	32900	1870	18.6	4.42	1460	187
HN	475 x 150	470	150	7	13	13	71.53	56.2	26200	733	19.1	3.2	1110	97.8
HN	475 x 150	475	151.5	8.5	15.5	13	86.15	67.6	31700	901	19.2	3.23	1330	119
HN	475 x 150	482	153.5	10.5	19	13	106.4	83.4	39600	1150	19.3	3.28	1640	150
HN	500 x 150	492	150	7	12	13	70.21	55.1	27500	677	19.8	3.1	1120	90.3
HN	500 x 150	500	152	9	16	13	92.21	72.4	37000	940	20	3.19	1480	124
HN	500 x 150	504	159	10	18	13	103.3	81.1	41900	1080	20.1	3.23	1660	141
HN	500 x 200	496	199	9	14	13	99.29	77.9	40800	1840	20.3	4.3	1650	185
HN	500 x 200	500	200	10	16	13	112.3	88.1	46800	2140	20.4	4.36	1870	214
HN	500 x 200	506	201	11	19	13	129.3	102	55500	2580	20.7	4.46	2190	257
HN	550 x 200	546	199	9	14	13	103.8	81.5	50800	1840	22.1	4.21	1860	185
HN	550 x 200	550	200	10	16	13	117.3	92	58200	2140	22.3	4.27	2120	214
HN	600 x 200	596	199	10	15	13	117.8	92.4	66600	1980	23.8	4.09	2240	199
HN	600 x 200	600	200	11	17	13	131.7	103	75600	2270	24	4.15	2520	227
HN	600 x 200	606	201	12	20	13	149.8	118	88300	2720	24.3	4.25	2910	270
HN	625 x 200	625	198.5	11.5	17.5	13	138.8	109	85000	2290	24.8	4.06	2720	231
HN	625 x 200	630	200	13	20	13	158.2	124	97900	2680	24.9	4.11	3110	268
HN	625 x 200	638	202	15	24	13	186.9	147	118000	3320	25.2	4.21	3710	328
HN	650 x 300	646	299	10	15	13	152.8	120	110000	6690	26.9	6.61	3410	447
HN	650 x 300	650	300	11	17	13	171.2	134	125000	7660	27	6.68	3850	511
HN	650 x 300	656	301	12	20	13	195.8	154	147000	9100	27.4	6.81	4470	605
HN	700 x 300	692	300	13	20	18	207.5	163	168000	9020	28.5	6.59	4870	601
HN	700 x 300	700	300	13	24	18	231.5	182	197000	10800	29.2	6.83	5640	721
HN	750 x 300	734	299	12	16	18	182.7	143	161000	7140	29.7	6.25	4390	478
HN	750 x 300	742	300	13	20	18	214	168	197000	9020	30.4	6.49	5320	601
HN	750 x 300	750	300	13	24	18	238	187	231000	10800	31.1	6.74	6150	721
HN	750 x 300	758	303	16	28	18	284.8	224	276000	13000	31.1	6.75	7270	859
HN	800 x 300	792	300	14	22	18	239.5	188	248000	9920	32.2	6.43	6270	661
HN	800 x 300	800	300	14	26	18	263.5	207	286000	11700	33	6.66	7160	781
HN	850 x 300	834	298	14	19	18	227.5	179	251000	8400	33.2	6.07	6020	564
HN	850 x 300	842	299	15	23	18	259.7	204	298000	10300	33.9	6.28	7080	687
HN	850 x 300	850	300	16	27	18	292.1	229	346000	12200	34.4	6.45	8140	812
HN	850 x 300	858	301	17	31	18	324.7	255	395000	14100	34.9	6.59	9210	939
HN	900 x 300	890	299	15	23	18	266.9	210	339000	10300	35.6	6.2	7610	687
HN	900 x 300	900	300	16	28	18	305.8	240	404000	12600	36.4	6.42	8990	842
HN	900 x 300	912	302	18	34	18	360.1	283	491000	15700	36.9	6.59	10800	1040
HN	1000 x 300	970	297	16	21	18	276	217	393000	9210	37.8	5.77	8110	620
HN	1000 x 300	980	298	17	26	18	315.5	248	472000	11500	38.7	6.04	9630	772
HN	1000 x 300	990	298	17	31	18	345.3	271	544000	13700	39.7	6.3	11000	921
HN	1000 x 300	1000	300	19	36	18	395.1	310	634000	16300	40.1	6.41	12700	1080
HN	1000 x 300	1008	302	21	40	18	439.3	345	712000	18400	40.3	6.47	14100	1220
HT	100 x 50	95	48	3.2	4.5	8	7.62	5.98	115	8.39	3.88	1.04	24.2	3.49
HT	100 x 50	97	49	4	5.5	8	9.37	7.36	143	10.9	3.91	1.07	29.6	4.45
HT	100 x 100	96	99	4.5	6	8	16.2	12.7	272	97.2	4.09	2.44	56.7	19.6
HT	125 x 60	118	58	3.2	4.5	8	9.25	7.26	218	14.7	4.85	1.26	37	5.08
HT	125 x 60	120	59	4	5.5	8	11.39	8.94	271	19	4.87	1.29	45.2	6.43
HT	125 x 125	119	123	4.5	6	8	20.1	15.8	532	186	5.14	3.04	89.5	30.3
HT	150 x 75	145	73	3.2	4.5	8	11.47	9	416	29.3	6.01	1.59	57.3	8.02
HT	150 x 75	147	74	4	5.5	8	14.12	11.1	516	37.3	6.04	1.62	70.2	10.1
HT	150 x 100	139	97	3.2	4.5	8	13.43	10.6	476	68.6	5.94	2.25	68.4	14.1
HT	150 x 100	142	99	4.5	6	8	18.27	14.3	654	97.2	5.98	2.3	92.1	19.6
HT	150 x 150	144	148	5	7	8	27.76	21.8	1090	378	6.25	3.69	151	51.1
HT	150 x 150	147	149	6	8.5	8	33.67	26.4	1350	469	6.32	3.73	183	63
HT	175 x 90	168	88	3.2	4.5	8	13.55	10.6	670	51.2	7.02	1.94	79.7	11.6
HT	175 x 90	171	89	4	6	8	17.58	13.8	894	70.7	7.13	2	105	15.9
HT	175 x 175	167	173	5	7	13	33.32	26.2	1780	605	7.3	4.26	213	69.9
HT	175 x 175	172	175	6.5	9.5	13	44.64	35	2470	850	7.43	4.36	287	187
HT	200 x 100	193	98	3.2	4.5	8	15.25	12	994	70.7	8.07	2.15	103	97.1
HT	200 x 100	196	99	4	6	8	19.78	15.5	1320	97.2	8.18	2.21	135	14.4
HT	200 x 150	188	149	4.5	6	8	26.34	20.7	1730	331	8.09	3.54	184	44.4
HT	200 x 200	192	198	6	8	13	43.69	34.3	3060	1040	8.37	4.86	319	105
HT	250 x 125	244	124	4.5	6	8	25.86	20.3	2650	191	10.1	2.71	217	30.8
HT	250 x 175	238	173	4.5	8	13	39.12	30.7	4240	691	10.4	4.2	356	79.9
HT	300 x 150	294	148	4.5	6	13	31.9	25	4800	325	12.3	3.19	327	43.3
HT	300 x 200	286	198	6	8	13	49.33	38.7	7360	1040	12.2	4.58	515	105
HT	350 x 175	340	173	4.5	6	13	36.97	29	7490	518	14.2	3.74	441	59.9
HT	400 x 150	390	148	6	8	13	47.57	37.3	11700	434	15.7	3.01	602	58.6
HT	400 x 200	390	198	6	8	13	55.57	43.6	14700	1040	16.2	4.31	752	105
HP	200 x 200	200	200	8	12	13	63.53	49.9	4720	1600	8.61	5.02	472	160
HP	250 x 250	250	250	9	14	13	91.43	71.8	10700	3650	10.8	6.31	860	292
HP	300 x 300	300	300	10	15	13	118.5	93	20200	6750	13.1	7.55	1350	450
HP	350 x 350	344	348	10	16	13	144	113	32800	11200	15.1	8.83	1910	646
HP	350 x 350	350	350	12	19	13	171.9	135	39800	13600	15.2	8.88	2280	776
HP	400 x 400	400	400	13	21	22	218.7	172	66600	22400	17.5	10.1	3330	1120
HP	400 x 400	400*	408	21	21	22	250.7	197	70900	23800	16.8	9.74	3540	1170
HP	400 x 400	414*	405	18	28	22	295.4	232	92800	31000	17.7	10.2	4480	1530
HP	400 x 400	428*	407	20	35	22	360.7	283	11900	39400	18.2	10.4	5570	1930
HP	400 x 400	458*	417	30	50	22	528.6	415	18700	60500	18.8	10.7	8170	2900
HP	400 x 400	498*	432	45	70	22	770.1	604	29800	94400	19.7	11.1	12000	4370
