ZXSTEELGROUP have more than 20 years experiences for sale steel rail and track accessories, including rail clip, rail clamp, rail joint, rail rubber pad, rail spikes, etc. Can process according to your demand. Contact us for more details!

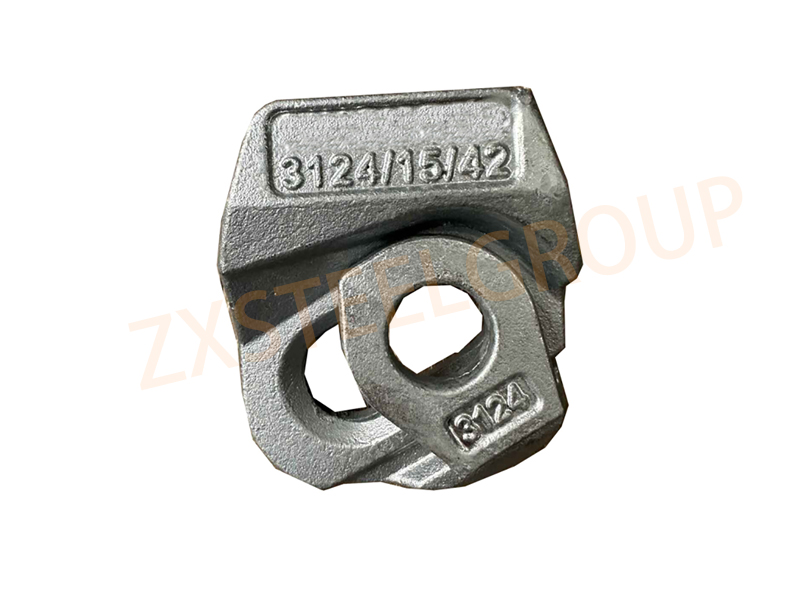

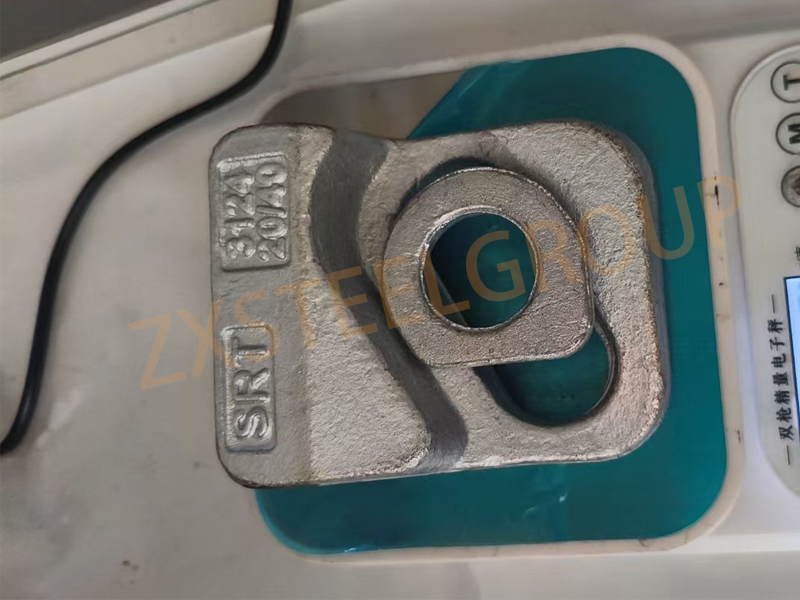

3124/20/42 Adjustable crane rail clip is designed to fix light rails in the most arduous applications. It can withstand a horizontal force from the rail of 125kN(12.7tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.
Specification:
Max side load 125KN
20mm horizontal rail adjustment
Dimensions(mm):
| REF NO. | X | Y FULL NUT | Y THIN NUT | Z | WEIGHT kg |
| 3124/20/42 | 42 | 50 | 45 | 26 | 1.25 |
| S (rubber) | RAIL WITH PAD PLAN | 14mm | |||
| H (rubber) | RAIL WITHOUR PAD PLAN | 21mm | |||
Components:
1. Special washer
2. Forging steel clip
3. Vulcanized rubber block
Applications:
Used for Qu100, Qu120, P60, Jis60, A100, A120, A150, Cr73, Cr100, etc. Other sizes according to your requirements.
Features:
1. The proven design has been used successfully for many years throughout the world.
2. The clip is welded to the rail support.
3. The two main parts are locked together on tightening the nut.
4. A special vulcanized rubber block applies a controlled force to the rail.
